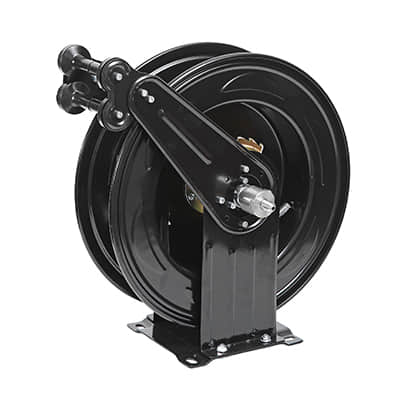

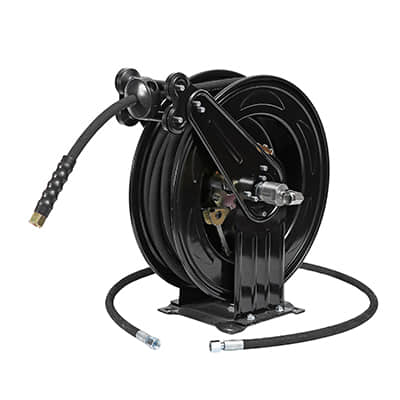

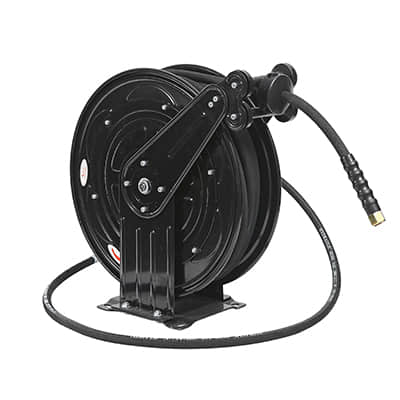

Heavy Duty Retractable High Pressure Hose Reel
Key Features
1. Pressure-On Retraction Technology
Allows safe hose rewinding while the system remains pressurized, improving efficiency and reducing downtime.
2. Heavy-Duty Dual Arm Construction
Reinforced dual-arm design provides superior stability, load distribution, and long-term durability.

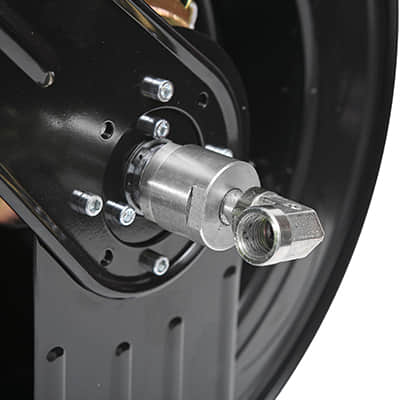

3. Stainless Steel Swivel Joint
Precision-machined swivel ensures smooth rotation and reliable performance under high-pressure conditions.
4. Advanced PTFE Sealing System
High-quality PTFE seals offer excellent resistance to pressure, wear, oil, water, chemicals, and temperature fluctuations.

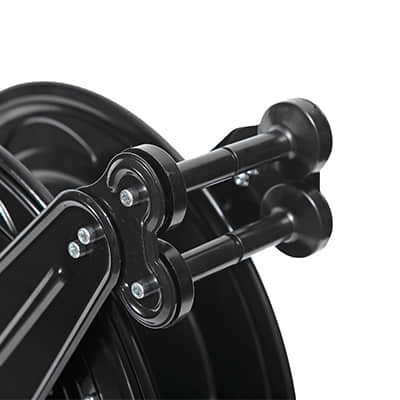

5. Hose Protection Roller System
Guide rollers reduce hose abrasion and extend service life by preventing direct contact with metal surfaces.
6. Industrial Corrosion Resistance
Hot-rolled pickled steel construction with powder-coated finish provides long-lasting protection against rust and corrosion.

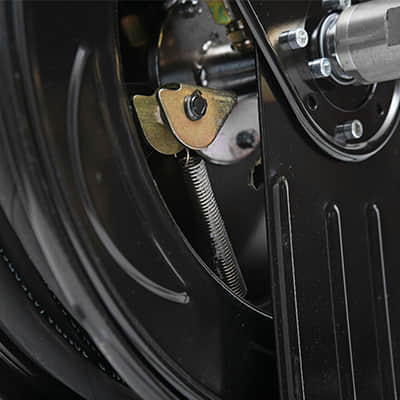

7. 12-Position Hose Locking Mechanism
Multiple locking positions allow the hose to be secured at the desired working length for improved convenience and safety.

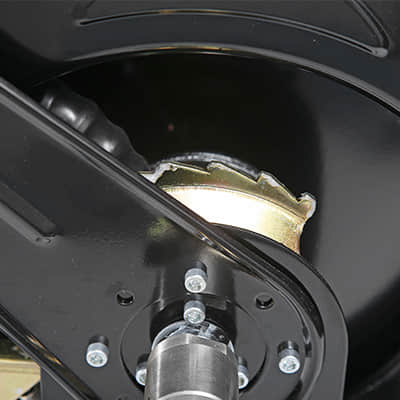

8. Long-Life Spring Rewind System
Premium 65Mn spring steel mechanism tested for over 20,000 cycles, ensuring smooth and reliable hose retraction.
9. High-Pressure Performance
Designed for up to 500 Bar water and 600 Bar oil applications in demanding industrial environments.
10. Wide Range of Applications
Suitable for pressure washing, hydraulic systems, oil transfer, compressed air, mining, agriculture, construction, workshops, and manufacturing facilities.
Technical Specifications
Specification | Details |
Product Type | Retractable High Pressure Hose Reel |
Reel Structure | Dual Arm Reinforced Design |

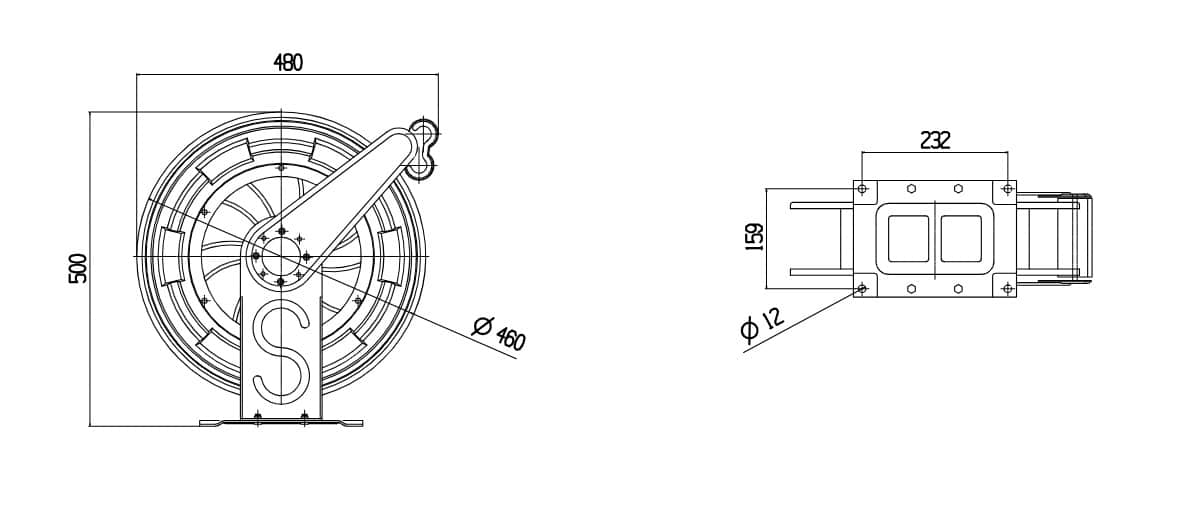

Reel Diameter | 460 mm |
Product Dimensions | 480 × 190 × 500 mm |
Packaging Dimensions | 505 × 220 × 520 mm |
Net Weight | 13.5 kg |
Gross Weight | 14.5 kg |
Material | Hot-Rolled Pickled Steel |
Surface Finish | Industrial Powder Coating |
Corrosion Resistance | Salt Spray Tested |
Swivel Material | Stainless Steel |
Seal Material | PTFE (Teflon) |
Spring Material | 65Mn Spring Steel |
Cycle Life | 20,000+ Cycles |
Inlet Connection | 3/8" |
Outlet Connection | 3/8" |
Operating Temperature | -20°C to 120°C |
Water Pressure Rating | 500 Bar |
Oil Pressure Rating | 600 Bar |
Media Compatibility | Water, Hydraulic Oil, Lubricating Oil, Air |
Hose Lock Positions | 12 Positions |
Mounting Options | Wall, Floor, Ceiling, Vehicle Mounting |
OEM Service | Available |
Hose Capacity
| Hose I.D. | Max Capacity |
1/4" | 20 m(65 ft) |
5/16" | 20 m(65 ft) |
3/8" | 20 m(65 ft) |
1/2" | 20 m(65 ft) |
Why Choose Our Hose Reel?
Superior Durability
Premium steel construction, reinforced dual-arm support, and industrial-grade components ensure years of reliable service.
Reduced Maintenance
High-quality PTFE seals and stainless steel swivel joints reduce wear, leakage, and maintenance requirements.
Improved Productivity
Pressure-on retraction capability and smooth hose management help operators work faster and more efficiently.
Enhanced Hose Protection
Guide roller system minimizes hose abrasion and extends hose life, reducing replacement costs.
Multi-Industry Compatibility
Suitable for water, oil, lubrication systems, and compressed air applications across a wide range of industries.
OEM & ODM Services
As a professional hose reel manufacturer, we provide comprehensive OEM and ODM solutions for global distributors, wholesalers, and equipment brands.
Customization options include:
Custom Logo Printing
Custom Colors
Custom Packaging
Customized Hose Lengths
Custom Inlet & Outlet Connections
Pressure Rating Customization
Private Label Manufacturing
Product Design Optimization
Frequently Asked Questions
Can the hose be retracted while the system is under pressure?
Yes. This reel is specifically designed to support pressure-on retraction, allowing the hose to be rewound without releasing system pressure.
What media can be used with this reel?
The reel is suitable for water, hydraulic oil, lubricating oil, and compressed air applications.
What is the maximum working pressure?
Up to 500 Bar for water applications and 600 Bar for oil applications.
What materials are used in the swivel assembly?
The swivel assembly is manufactured from high-quality stainless steel for maximum durability and corrosion resistance.
What sealing material is used?
Premium PTFE (Teflon) seals are used to ensure excellent pressure resistance and long service life.
How long does the spring mechanism last?
The 65Mn spring steel mechanism has been tested for over 20,000 extension and retraction cycles.
Is OEM service available?
Yes. We offer full OEM and ODM manufacturing services for international customers.
