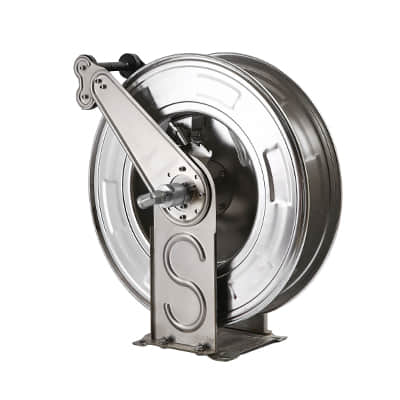

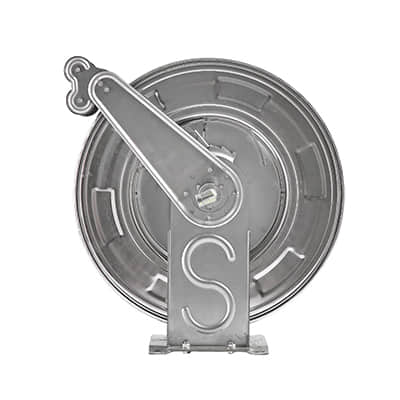

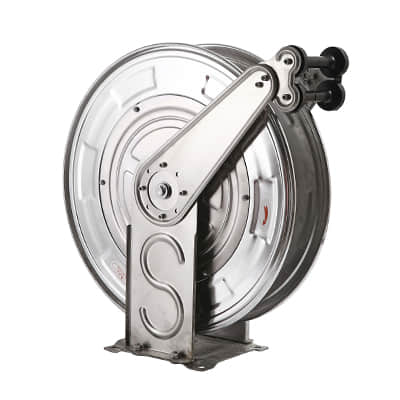

Food Grade SUS304 Stainless Steel Retractable High Pressure Hose Reel
1. Full SUS304 Stainless Steel Construction
Food-grade 304 stainless steel body with excellent resistance to corrosion, rust, moisture, chemicals, and harsh environments.
2. Pressure-On Retraction Design
Allows hose retraction while the system remains pressurized, improving efficiency and reducing downtime.
3. Heavy-Duty Reinforced Structure
Dual-arm support design provides superior strength, stability, and durability for continuous industrial use.

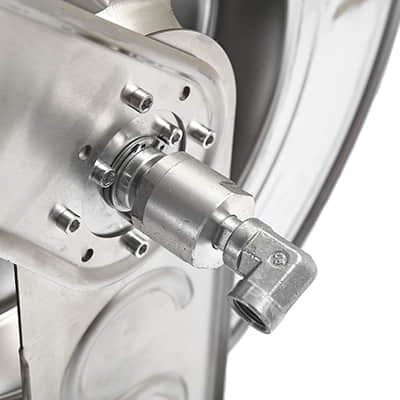

4. Stainless Steel Swivel & PTFE Seals
High-performance stainless steel swivel combined with PTFE sealing technology ensures smooth rotation, leak-free operation, and long service life.
5. Hose Protection & Multi-Position Locking
Integrated guide rollers reduce hose wear, while the 12-position locking system offers flexible hose length control.
6. Built for Hygienic & Corrosive Environments
Ideal for food processing, pharmaceuticals, marine, chemical plants, pressure washing, agriculture, and industrial cleaning applications.
Technical Specifications
Specification | Details |
Product Type | Retractable High Pressure Hose Reel |
Construction Material | Food Grade SUS304 Stainless Steel |
Reel Structure | Reinforced Dual Arm Design |
Reel Diameter | 460 mm |

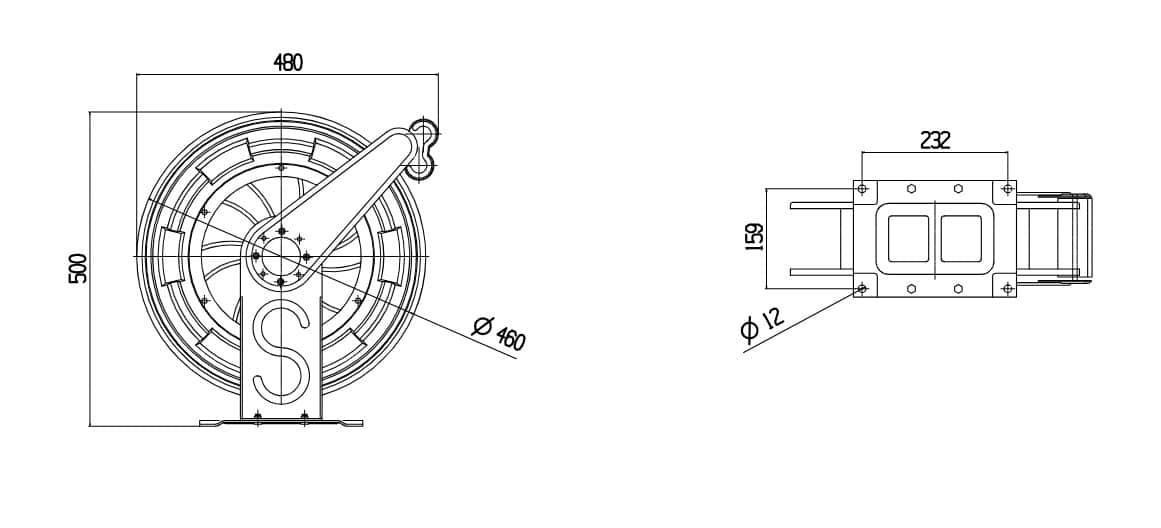

Product Dimensions | 480 × 190 × 500 mm |
Packaging Dimensions | 505 × 220 × 520 mm |
Net Weight | 13.5 kg |
Gross Weight | 14.5 kg |
Swivel Material | Stainless Steel |
Seal Material | PTFE (Teflon) |
Spring Material | 65Mn Spring Steel |
Spring Design | Pre-Tensioned |
Cycle Life | 20,000+ Cycles |
Inlet Connection | 3/8" |
Outlet Connection | 3/8" |
Operating Temperature | -20°C to 120°C |
Water Pressure Rating | 500 Bar |
Oil Pressure Rating | 600 Bar |
Compatible Media | Water, Hydraulic Oil, Lubricating Oil, Air |
Hose Lock Positions | 12 Positions |
Mounting Options | Wall, Ceiling, Floor, Vehicle |
OEM Service | Available |
Hose Capacity
| Hose I.D. | Max Capacity |
1/4" | 20 m(65 ft) |
5/16" | 20 m(65 ft) |
3/8" | 20 m(65 ft) |
1/2" | 20 m(65 ft) |
Why Choose 304 Stainless Steel?
Outstanding Corrosion Resistance
Unlike painted steel reels, 304 stainless steel provides long-term protection against rust and environmental damage.
Hygienic and Easy to Clean
Smooth stainless steel surfaces are easy to sanitize and ideal for food-grade and pharmaceutical environments.
Lower Lifetime Maintenance Cost
Superior corrosion resistance reduces maintenance requirements and extends service life.
Professional Appearance
Premium stainless steel construction maintains a clean, professional appearance even after years of use.
Suitable for Indoor and Outdoor Installation
Engineered to perform reliably in demanding indoor and outdoor environments.
OEM & ODM Manufacturing Services
As a professional hose reel manufacturer, we provide customized solutions for distributors, wholesalers, equipment manufacturers, and private-label brands worldwide.
Available customization options include:
Custom Logo Engraving
Custom Branding
Stainless Steel Nameplates
Custom Hose Lengths
Custom Connections
Custom Packaging
Private Label Manufacturing
OEM & ODM Development
Frequently Asked Questions
Is the reel made entirely from stainless steel?
Yes. The main frame, drum, support arms, and external structural components are manufactured from food-grade SUS304 stainless steel.
Is it suitable for food processing facilities?
Yes. The hygienic stainless steel construction makes it ideal for food and beverage production environments.
Can it be used near the ocean or in marine environments?
Absolutely. SUS304 stainless steel offers excellent corrosion resistance and performs significantly better than painted carbon steel in humid or coastal conditions.
Can the hose be retracted while under pressure?
Yes. This reel supports pressure-on retraction for improved operational efficiency.
What is the service life of the spring mechanism?
The pre-tensioned 65Mn spring system is tested for more than 20,000 operating cycles.
Is OEM customization available?
Yes. We provide complete OEM and ODM manufacturing services for global customers.
